FOUNDATION

Screw pile foundation

We offer 2 types of screw pile plans:

  1. Standard screw piles
  2. Micropiles for challenging ground conditions (e.g. rock)

ODYL House with screw pile foundation comes with a 71.6m2 terrace around the house! This is important for comfort as well as neat design.

The terrace is designed to be a part of the glulam beams, therefore, installation of decking boards are integrated and installed on the beams.

Decking board options: impregnated or thermally modified.

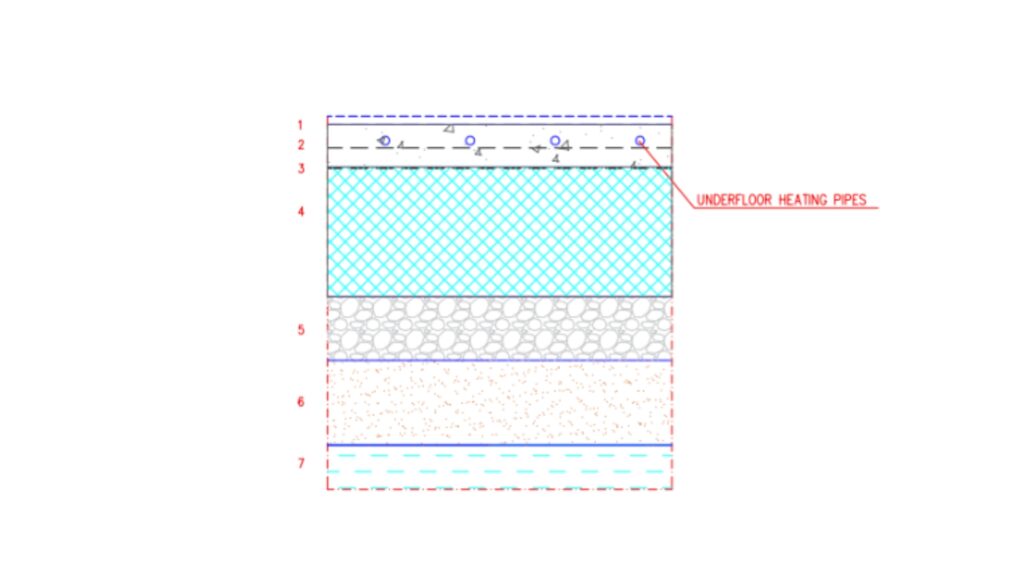

Slab foundation


  • Reinforced concrete slab C25/30 (100 mm, factor 60.5, mesh 7/150-A500HW)
  • Moisture insulation (0.2 mm film, 200 mm joints tapped with overlay)
  • Insulation (300 mm EPS 100 (0.037 W/m²K)
  • Gravel substrate (200 mm)
  • Sand filling layer (if necessary, e.g. 200 mm, compaction degree 0.95)
  • Parquet (any click flooring)
  • Plinth elements (Benders or other equivalent)
  • Air – water floor heating (Alpha Innotec L6 Split A+++, or other equivalent)

Terrace for slab foundation based houses is optional and can be designed in any size.

Standard installation with screw piles.

STAGE 1 – HOUSE STRUCTURES AND EXTERIOR

1.1. Structural elements

  • Glulam beams and posts
  • CLT floor, ceiling, interior walls, intermediate ceiling (loft)
  • Glulam and CLT oil finishes
  • More affordable option
  • Glulam beams and posts
  • Oil finishes on glulam elements
  • Roof, floor, exterior and interior walls from wood frame panels
ODYL House view from the front
House exterior

1.2. Opening fillings

  • Triple glazed with Chromatech thermal spacer
  • Laminated glass (non-laminated is an option for limited budget)
  • Triple glazed with Chromatech thermal spacer
  • Wooden windows (IV92 German standard UNI-JET M hinge-side)
  • Parallel sliding doors (sliding rail GU934)

1.3. Roof

  • Stone roof or steel roofing sheets
  • Hidden rain gutters installation
ODYL house drone photo from above
House and solar panels

1.4. Exterior

  • Roof, floor and exterior walls insulation
  • Entrance door
ODYL House entrance door
ODYL House entrance

STAGE 2 – HOUSE READY FOR INTERIOR WORKS

2.1. Heating/cooling

  • Concealed air-air heat pump for heating and cooling
  • Heating from the floor, cooling from the ceiling
  • Floor heating with air-water heat pump
  • Concealed cooling device installation (air-air)

2.2. Ventilation

  • Forced extraction from wet rooms
  • Fresh air valves
  • Heat recovery ventilation device installation

2.3. Electrical works

  • All electrical works

2.4 Water and canalisation

  • All water and canalisation works

2.5. Bathroom

  • WEDI boards
  • Bathroom box building

2.6. Other

  • Sub-flooring
  • Plasterboard installation and storage room cover all

STAGE 3 – KEYS TO THE HOUSE

3.1. Finishes

  • Paint finishes on walls and ceilings

3.2. Hanging ceilings

  • Bathroom and storage room hanging ceiling installation

3.3. Parquet

  • Parquet installation and silicon finishes (no skirting boards)

3.4. Interior doors

  • Interior doors installation.

3.5. Bathroom interior

  • Bathroom tiling and accessories installation

3.6. Add-ons

  • All chosen add-ons installation for interior design
Bathroom
ODYL living room/kitchen
Bathroom wood-felt hanging ceiling

Let's get into details
